| 24vdc to 200vdc power supply |

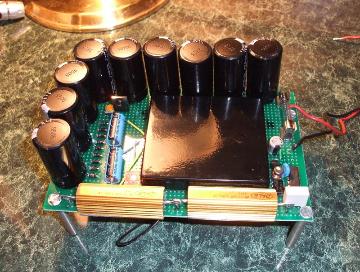

| 9 Bank Capacitor Discharge Power Supply |
| 6 ematch fired in Parellel with 24v to 200v capacitor / 600' 24ga wire |
| 9 ematch fired in parellel with 24v to 200v capacitor /600' 24ga |
| Fired several times to burn bridge wire and check for mis fires |
| Slat 3 |
| Slat 1 |
| Slat 2 |

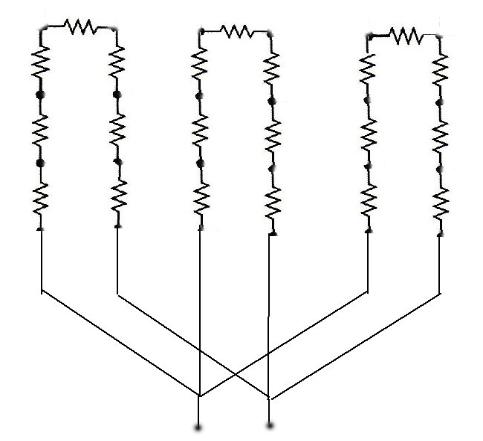

| Three slats in parallel with ematch in series allowing for multiple fronts |
Quote from FireOne systems- tm Each cue can fire up to eight to ten electric matches connected in parallel and 15 to 20 wired in series. Therefore, each Firing Module is capable of firing between 256 to 640 electric matches! |
| My system has the capacity to fire 9 ematch (so far tested) in parallel per cue, thats 9 x 864 = 7776 ematch each module is capable of firing 324 ematch in parallel not tested over 20 in series yet No wait time. |
| Please allow time to load |
| Tested 20 ematch in series with 24ga 600' wire. All fire |
